VT4
The VT4 plate is useful for connecting truss bottom chords to top chords where the bottom chord hangs from the top chord (as in collar ties/tie beams).

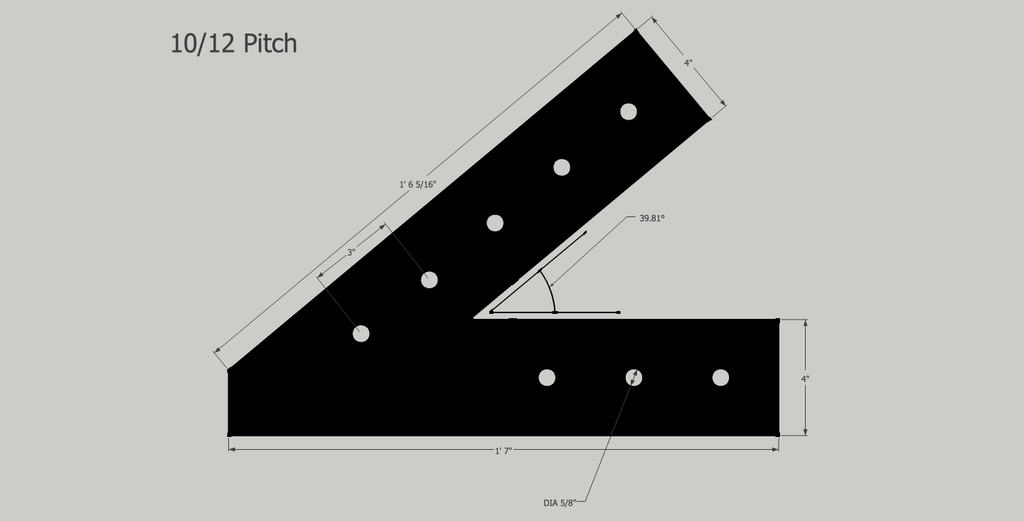

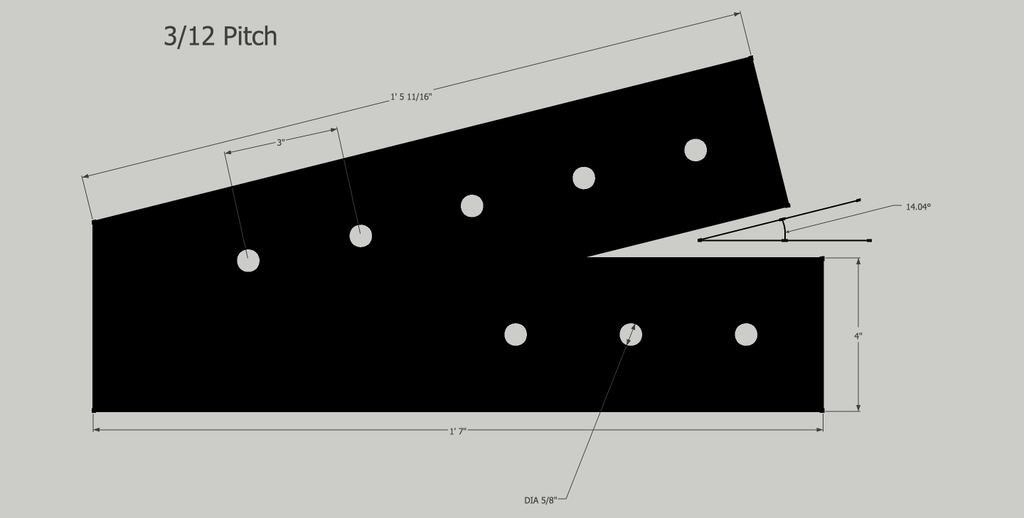

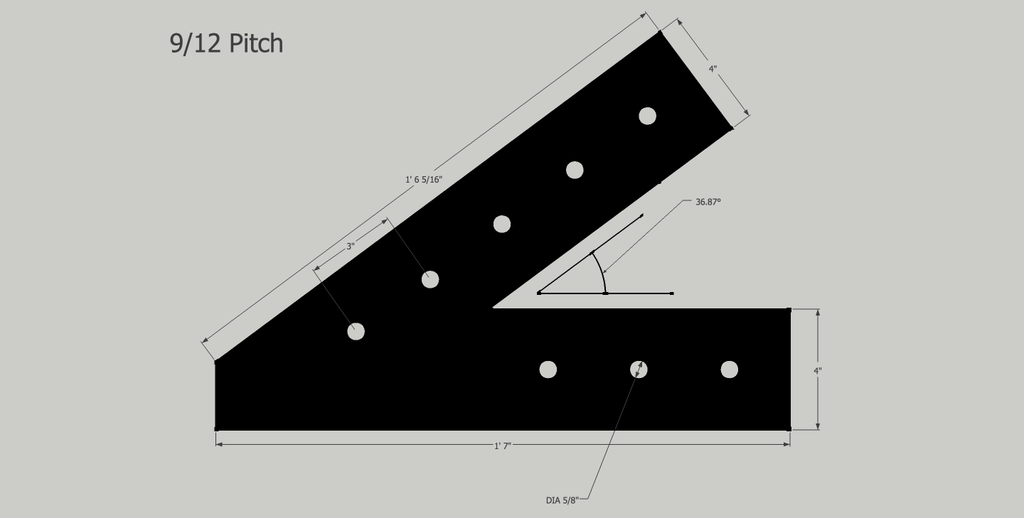

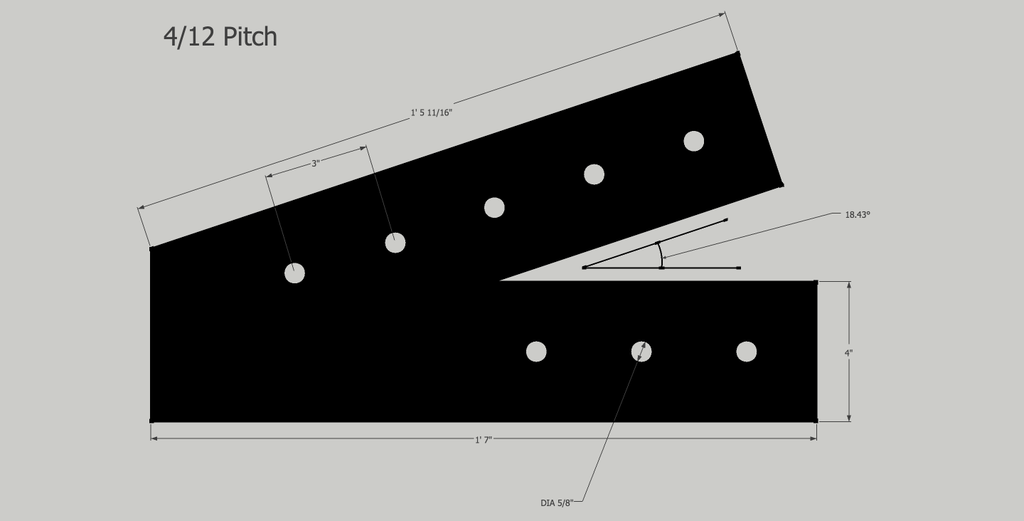

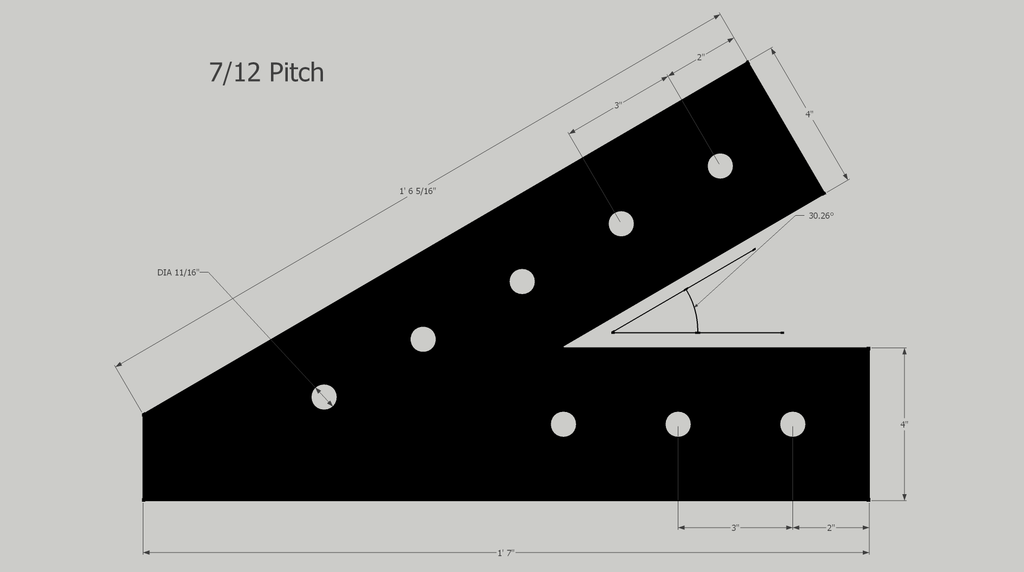

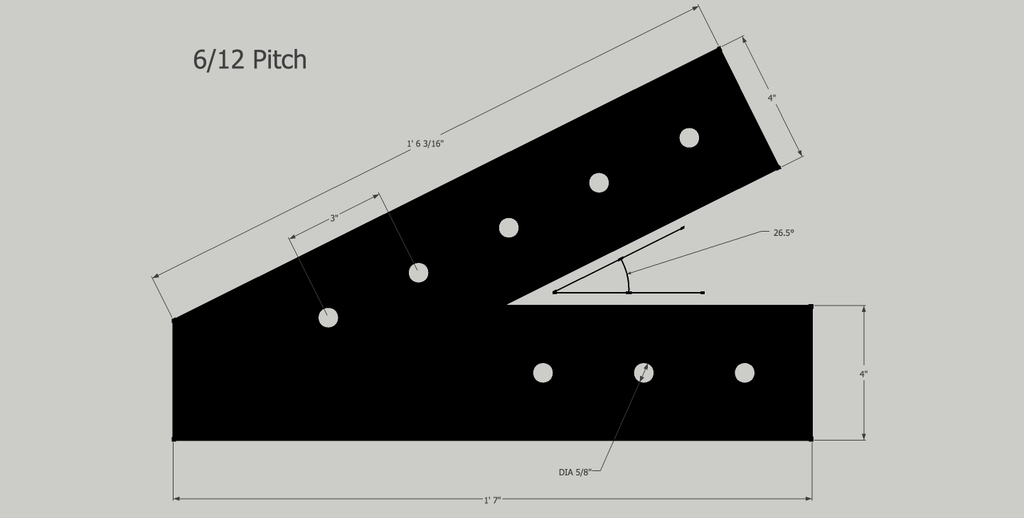

V plates connect to roof members so they depend on roof pitch. Please choose the correct pitch and plate thickness from the dropdown.
To see dimensions, hover over image to magnifer (desktop) or click image and zoom in (mobile).
